iTHERM ModuLine TT411
Welded thermowell

Metric thermowell for hygienic and aseptic applications in the food & beverages and pharmaceutical industries

TT411

Compare

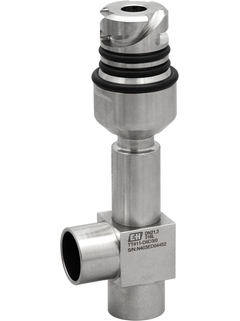

Hygienic thermowell design — TT411 elbow thermowell and iTHERM QuickNeck

State of the art Tee and Elbow elements with best-in-class hygienic design — Half-section view of the TT411 elbow thermowell, with the thermowell projecting straight into one side of the pipe bend

TT411 Varivent version with reduced tip and iTHERM QuickNeck

Specs at a glance

Max. process pressure (static)

40 bar (580 psi)
Maximum standard immersion length

4.000 mm (157,48")
Max. immersion length on request

Not defined

See all specifications

Field of application

Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.

Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Pressure range up to 40 bar (580 psi)
For increased protection requirements of the temperature sensor regarding physical and chemical effects
For use in pipes and containers or tanks
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes

Benefits

iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
recalibration of the insert used
Over 50 hygienic process connections
Global portfolio with metric and imperial versions
International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE,
FDA, TSE Certificate of Suitability
Optional: 1.4435 material, delta ferrite content < 1%
Fast response time owing to reduced tips with thin walls
State of the art Tee and Elbow thermowells, without welds and dead legs and with best in class hygienic design

Extended selection

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Loading alternative products

Predecessor

TA14
Pipe thermowell TW45

Bar stock thermowell TW47

Success stories

Automated inline self-calibration at Lonza

Automated inline self-calibration at Lonza for full monitoring throughout bioprocess
Read the full story
Prevent grain dust ignition in bulk tanks & silos

How temperature profiling increases plant safety and product quality in bulk tanks and silos for food storage.
Read the full story
Self-calibrating thermometers in hygienic processes

This white paper explains how self-calibrating thermometers can be used in hygienic process engineering. It details theory and practice as well as application examples. Learn more!
Read the full story
Medical autoclaves

New sensor technology automates recalibrations to reduce risk in batch sterilization. Learn More!
Read the full story
Speed and accuracy help to meet stringent quality demands

Chr. Hansen eased temperature monitoring and calibration, both critical to the UHT treatment of the nutrient solution, using iTHERM TM411 temperature sensor
Read the full story
