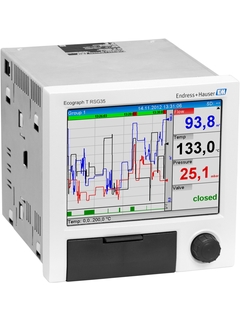

Ecograph T RSG35
Universal Graphic Data Manager
Paperless recording, visualization and monitoring of the process values at the same time
-
©Endress+Hauser
Safe and complete recording and visualization of all process sequences. Demands on process monitoring and data recording are becoming more and more complex. Because every measurement value counts, the Universal Data Manager Ecograph T RSG35 records, visualizes and monitors all analog or digital input signals. The unit is easy to use and comes with features to save costs and simplify data acquisition. Due to its variety of communication possibilities a simple system integration is possible.
Benefits
Versatile: up to 12 universal inputs record a wide range of measuring signals
Clear layout: 5.7" TFT screen for displaying measured values in a maximum of four groups, with digital, bar graph and curve display
Safe: reliable data archiving with internal memory and separate SD card
Easy: intuitive operation via the navigator (jog/shuttle dial) on site, or user-friendly operation at the PC via the integrated web server
Compact: low installation depth, saves space and money
System-enabled: common interfaces such as Ethernet, RS232/485, USB and optional slave function for Modbus RTU/TCP
Informative: e-mail notification in event of alarms and limit violation
Field of application
The Ecograph T is the right solution for a wide range of applications such as:
Quality and quantity monitoring in the water and wastewater industry
Temperature monitoring in metal working
Monitoring of processes in power stations
Displaying and recording of critical process parameters
Tank and level monitoring
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: CHROML, CHROMP, Chromalog SP CHROSP, MULLOG, MULVAR, PRILOG, RD10, RD10S, Alphalog RSA10, Ecograph RSG20, Ecograph A RSG22, Ecograph C RSG24, Ecograph T RSG30, Chroma-Log SL RSL, Chromalog T RSL30
