Point level switch

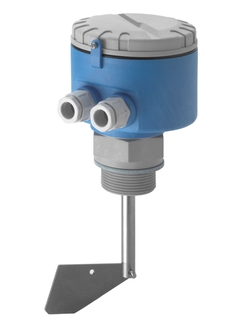

Soliswitch FTE30
rotary paddle switch

Soliswitch FTE30 ©Endress+Hauser

Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids

The economical Soliswitch FTE30 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      -20 °C ... 80 °C (-4 °F ... 170 °F)

    • Process pressure absolute / max. overpressure limit

      0.5 bar to 1.5 bar (7 psi to 22 psi)

    • Min. density of medium

      >= 100 g/l

Quick selection

Choose from our suggested options
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

FTE30
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Reliable and economical paddle switch

    • Highest safety standard

    • Diverse instrument designs for use under different application conditions

    • Slip clutch prevents impact on paddle

    • Ingress protection to IP65 for optimum safety in the process

  • Field of application

    • Process connections: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305

    • Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2,000 mm (80") (can be shortened)

    • Temperature: -20 to +80 °C (-4...

Features and specifications

Back

Details

  • Measuring principle

    Paddle

  • Characteristic / Application

    universally applicable as a full, empty and demand alarm on silos containing solids

  • Specialities

    Hinged paddle

  • Supply / Communication

    230 VAC 50/60 Hz

    115 VAC 50/60 Hz

    48 VAC 50/60 Hz

    24 VAC 50/60 Hz

    20 bis 28 VDC

  • Ambient temperature

    -20 °C ... 60 °C (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 80 °C (-4 °F ... 170 °F)

  • Process pressure absolute / max. overpressure limit

    0.5 bar to 1.5 bar (7 psi to 22 psi)

  • Min. density of medium

    >= 100 g/l

  • Main wetted parts

    Shaft: 1.4305

    Paddle: 1.4301

  • Process connection

    G 1 1/2", PBT

    G 1 1/2", 1.4305

    Reinforced shaft G 1 1/2", 1.4305

  • Sensor length

    100 mm (4")

    200 mm (8")

    300 mm (12")

    400 mm (16")

    500 mm (20")

    600 mm (24")

    Rope length of approx 2000 mm (80"), can be shortened

  • Communication

    Micro switch with changeover contact max. 10 A/250 VAC

  • Certificates / Approvals

    No approvals available

  • Options

    Relay

  • Application limits

    max. grain size 50 mm (2")
