Digital sensor for free bromine Memosens CCS55E

Digital free bromine sensor
Memosens CCS55E

Memosens sensor for seawater applications and process water

CCS55E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Free bromine sensor for ideal disinfection monitoring
  • F
  • L
  • E
  • X
©Endress+Hauser

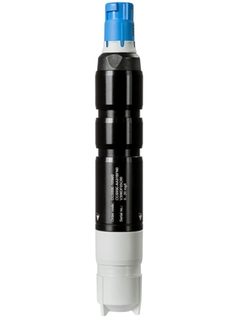

Memosens CCS55E free bromine sensor

Free bromine sensor in assembly
  • F
  • L
  • E
  • X
©Endress+Hauser

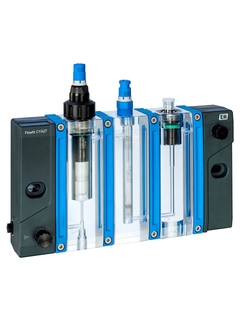

Memosens CCS55E free bromine sensor in Flowfit CYA27 assembly

Memosens CCS55E free bromine sensor

Memosens technology

Specs at a glance

  • Measurement range

    Trace: 0 ... 5 mg/l HOBr
    Standard: 0 ... 20 mg/l HOBr
    High: 0 ... 200 mg/l HOBr

  • Process temperature

    +0...55 °C (32 ... 130°F), non-freezing

  • Process pressure

    Max. 1 bar (max. 14.5 psi)

Field of application

Memosens CCS55E is a high-precision sensor determining free bromine. Thereby, it helps ensuring disinfection in seawater applications like desalination plants, process or cooling water, swimming pools and fish farming industry. The low-maintenance sensor features fast response times guaranteeing efficient process control. Thanks to the latest Memosens 2.0 technology, it combines simple operation with maximum data integrity.

The Memosens CCS55E free bromine sensor measures reliably in:

  • Seawater applications such as desalination plants: to ensure reliable disinfection and support efficient dosing

  • Process and cooling water: where bromine disinfectants are used due to their reduced corrosion effect

  • Food industry: to accurately monitor water in fish farming

  • Pool water and therapeutic baths: where bromine is used due to the salinity of the water and as alternative to chlorine

Benefits

  • Safe disinfection in seawater applications: Since disinfection with chlorine forms bromine compounds when used in seawater, sole clorine monitoring would lead to measurement errors underestimating the disinfection effect.

  • High availability of the measuring point: pre-calibrating the sensor and swaping it with plug & play enables a fast sensor exchange. Plus, the poloarization time is faster with the new Memosens 2.0 technology.

  • Efficient process control: Quick response time (t90 < 20 s) provides an accurate process view and enables prompt reaction to changes. The sensor is not inactivated in bromine-free media - guaranteeing fast measurement after the addition of bromine.

  • Increased process safety: precise and long-term stable measurement ensures consistent process monitoring and allows for individually adapted disinfectant dosing.

  • Wide measurement range for different applications: From trace measurement up to free bromine concentrations of 200 mg/l.

  • Easy combination with other relevant parameters of liquid analysis such as pH and ORP by easily connecting the Liquiline multiparameter transmitter.

Videos

  • The digital free bromine sensor Memosens CCS55E extends our disinfection platform, which is presented in this video, for free bromine measurement in seawater applications

  • Memosens technology
    Memosens 2.0: Cutting-edge sensor technology reloaded

    Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.
