Cerabar PMP21

Cerabar PMP21: Part of a strong team for standard applications - Liquiphant, Liquipoint, Cerabar, Ceraphant

Pressure measuring principle

Cost-effective pressure transducer with metal sensor for measurement in gases or liquids

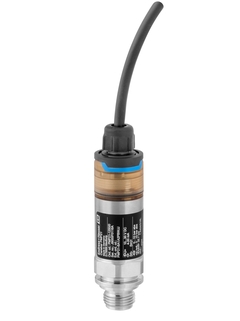

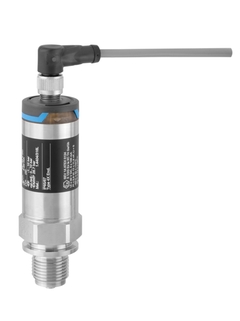

The Cerabar PMP21 is a price-attractive and very compact pressure transmitter. It features a piezo-resistive sensor and is able to measure absolute or gauge pressure from 400mbar up to 400bar. The PMP21 is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP 68 and high quality materials like 316L. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.

Sizing
Pricing after login and configuration

Compare

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optional add-ons

Please use the individual configurator to continue.

Individual configuration

Continue your selection from all possible options

Configure

Additional components

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
More information
Compare
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
More information
Compare
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
More information
Compare

Benefits
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

High reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process...

Show more
Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

High reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process monitoring

Enhanced process availability is underpinned by the stringent use of 316L material and the possibility of a submersible version with IP68 ingress protection rating

The need for documentation and traceability as well as safety in the plant can be supported by PMP21 as it ensures the compliance to various hazardous area and marine certifications and features optional EN10204 3.1 material certificates

Show less

Field of application
Pressure transducer with piezo-resistive metal sensor to measure absolute or gauge pressure in gases or liquids.

Process connections: Threads

Process temperature: -40 to +100°C (-40 to +212°F)

Process pressure: 400mbar to +400bar (6 to 6,000psi)

...

Show more
Pressure transducer with piezo-resistive metal sensor to measure absolute or gauge pressure in gases or liquids.

Process connections: Threads

Process temperature: -40 to +100°C (-40 to +212°F)

Process pressure: 400mbar to +400bar (6 to 6,000psi)

Accuracy: ±0.3% of span

International explosion protection certificates, marine approvals

Show less

Features and specifications

Back

Details

Measuring principle

Absolute and gauge pressure
Characteristic / Application

Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
Supply / Communication

10…30 VDC
Accuracy

0.3%
Long term stability

0.2% of URL/year
Ambient temperature

-40…+85°C

(-40…+185°F)
Process temperature

-40…+100°C

(-40…+212°F)
Process pressure absolute / max. overpressure limit

600 bar (9000 psi)
Pressure measuring range

400 mbar…+400 bar

(6...+6000psi)
Process connection

Thread:

G1/4, G1/2,

MNPT1/4, MNPT1/2,

DIN13,

JIS R1/2
Communication

4...20 mA
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, NEPSI, EAC
Design approvals

EN 10204-3.1

Final inspection report

Cleaned from oil and grease
Marine approval

DNV/ GL/ ABS/ LR/ RINA

Show more
Show less

Measuring principle

Absolute and gauge pressure
Characteristic

Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm
Supply voltage

10…30 VDC
Reference Accuracy

0.3 %
Long term stability

0.2 % of URL/year
Process temperature

-40 °C…+100 °C
(-40 °F…+212 °F)
Ambient temperature

-40 °C…+85 °C
(-40 °F…+185 °F)
Measuring cell

+400 mbar…+400 bar
(+6 psi...+6000 psi)
Max. overpressure limit

600 bar (9000 psi)
Process connection

Threads:

G1/4, G1/2,

MNPT1/4, MNPT1/2,

DIN13,

JIS R1/2
Communication

4...20 mA
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, NEPSI, EAC
Design approvals

EN 10204-3.1 Final inspection report

Cleaned from oil and grease
Marine approvals

DNV/ GL/ ABS/ LR/ RINA

Show more
Show less
