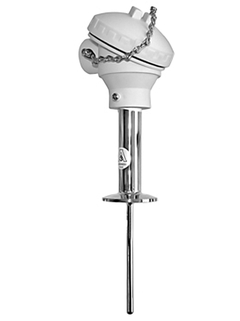

Fundamental imperial RTD direct contact thermometer for hygienic applications
-
Imperial RTD thermometer with or without thermowell for hygienic applications
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
| FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
US style
modular temperature assembly
hygienic design
hygienic process connection
with extension
-
Thermowell / protection tube
without (not intended to be used with thermowell)
-
Insert / probe
mineral insulated (MI), flexible
PTFE-insulated, rigid
-
Outer diameter protection tube / Insert
1/4'' (6,35 mm)
3/8'' (9,53 mm)
-
Max. immersion length on request
up to 4.877 mm (192,00'')
-
Material protection tube/ thermowell
-
Process connection
hygienic:
clamp connections TRI-Clamp / Micro-Clamp
-
-
-
Operating temperature range
PT 100:
-200 °C ... 200 °C
(-328 °F ... 392 °F)
-
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
-
Accuracy
class A acc. to IEC 60751
class 1/5 DIN
-
-
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
-
Certification
FDA
3A
SIL (transmitter only)
2 documents
-
Thermometer und Transmitter für die Prozessindustrie
|
Language:
|
German
|
|
Version:
|
04/02/2025
|
|
File size:
|
18.9 MB
|
|
File name:
|
FA00006Tde_2325.pdf
|
-
Thermometers and transmitters for the process industry
|
Language:
|
English
|
|
Version:
|
04/02/2025
|
|
File size:
|
18.8 MB
|
|
File name:
|
FA00006Ten_2325_interaktiv_verb.pdf
|
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Enclosure TU401, US Style
Drawing number
Order code
A
TU401-
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
-
Housing filter plastic F15, 3 pieces
-
Drawing number
Order code
A
TA30H-
-
Readwin 2000 Operation + Read. software
-
Fixing kit cpl. TMT8x/7x USA(american)
-
iTEMP TMT180, Head Transmitter Pt100
-
iTEMP TMT181, Head Transmitter PCP
-
iTEMP TMT182, Head Transmitter HART
-
iTEMP TMT184, headtransmitter PA
-
iTEMP TMT85, Transmitter FF
-
-
iTEMP TMT84, Transmitter PA
-
iTEMP TMT82, Transmitter HART
-
Drawing number
Order code
A
TMT162G-
-
Drawing number
Order code
A
TMT162X-
-
-
-
Display Unit Head Transmitter
-
-
-
-
